C-GRADE SYNTHETIC QUARTZ (SQUARE)

SUBSTRATE MATERIALUV Fused Quartz, UV grade (180-2100nm)
OUTER DIMENSIONRefer to table below; Tolerance -0.2/+0.0mm
THICKNESSRefer to table below; Tolerance +/-0.03mm
SURFACE QUALITYDouble side fine polished (40-20 scratch and dig, MIL Standard)
FLATNESS< Lambda/10 @ 632.8nm over clear aperture
PARALLELISM<1 arc minute
CHAMFER / BEVEL0.2~0.4mm x 45-deg protection ; Chip<0.1mm
Standardised specifications for all C-GRADE SYNTHETIC QUARTZ (SQUARE) products.
PART NUMBERKEY SPECIFICATIONSUNIT PRICE (SGD)AVAILABILITYSTOCK QTYPROMOTION
QUZS-C-S-00600060-00306.0×6.0xT0.3mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$25.00/pcIN STOCK33
QUZS-C-S-00700070-00407.0×7.0xT0.4mm, UV Quartz, 40-20 S/D Double-Side-Polished, MOQ=10pcsS$10.00/pcIN STOCK953
QUZS-C-S-00800050-01008.0×5.0xT1.0mm, UV Fused Quartz, 40/20 S/D Double-Side-PolishedS$16.00/pcIN STOCK500
QUZS-C-S-01000100-001710.0×10.0xT0.17mm, UV Synthetic Quartz, 40/20 S/DS$18.00/pcIN STOCK1669
QUZS-C-S-01000100-004010.0×10.0xT0.4mm, UV Fused Quartz, 40/20 S/D Double-Side-PolishedS$5.80/pcIN STOCK7200
QUZS-C-S-01000100-005010.0×10.0xT0.5mm, UV Fused Quartz, 40/20 S/D Double-Side-PolishedS$5.20/pcIN STOCK260
QUZS-C-S-01000100-006010.0×10.0xT0.6mm, UV Fused Quartz, 40/20 S/D Double-Side-PolishedS$5.20/pcIN STOCK408
QUZS-C-S-01000100-010010.0×10.0xT1.0mm, UV Fused Quartz, 40/20 S/D Double-Side-PolishedS$4.50/pcIN STOCK7506
QUZS-C-S-01200060-005012.0×6.0xT0.5mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$7.00/pcIN STOCK100
QUZS-C-S-01200080C-010012.0×8.0xT1.0mm, UV Quartz, 40/20 S/D Double-Side-Polished; Cube ShapeS$5.20/pcIN STOCK2000
QUZS-C-S-01250030-020012.5×3.0xT2.0mm, UV Quartz Block, 40-20 S/DS$65.00/pcIN STOCK6
QUZS-C-S-01500050-010015.0×5.0xT1.0mm, UV Fused Quartz, 40/20 S/D Double-Side-PolishedS$18.00/pcIN STOCK500
QUZS-C-S-01500150-004015.0×15.0xT0.4mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$8.20/pcIN STOCK7680
QUZS-C-S-01500150-005015.0×15.0xT0.5mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$8.50/pcIN STOCK1930
QUZS-C-S-01500150-006015.0×15.0xT0.6mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$8.50/pcIN STOCK2023
QUZS-C-S-01500150-010015.0×15.0xT1.0mm, UV Quartz, 40/20 S/DS$7.50/pcIN STOCK2253
QUZS-C-S-01600160-010016.0×16.0xT1.0mm, UV Quartz, 40/20 S/DS$10.00/pcIN STOCK50
QUZS-C-S-01600160-020016.0×16.0xT2.0mm, UV Quartz, 40/20 S/DS$15.00/pcIN STOCK130
QUZS-C-S-02000100-005020.0×10.0xT0.5mm, UV Quartz, 40-20 S/D, Double-Side-PolishedS$7.00/pcIN STOCK850
QUZS-C-S-02000100-010020.0×10.0xT1.0mm, UV Quartz, 40-20 S/D, Double-Side-PolishedS$6.50/pcIN STOCK1037
QUZS-C-S-02000200-001720.0×20.0xT0.17mm.UV Quartz, 40/20 S/D Double-Side-PolishedS$36.00/pcIN STOCK212
QUZS-C-S-02000200-003020.0×20.0xT0.3mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$18.00/pcIN STOCK1950
QUZS-C-S-02000200-004020.0×20.0xT0.4mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$14.00/pcIN STOCK1900
QUZS-C-S-02000200-005020.0×20.0xT0.5mm, UV Quartz, 40/20 S/D, Double-Side-PolishedS$12.00/pcIN STOCK332
QUZS-C-S-02000200-010020.0×20.0xT1.0mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$9.50/pcIN STOCK2925
QUZS-C-S-02000200-0230DUV20.0×20.0xT2.3mm, Deep UV, 40-20 S/D, 4-side polishedS$20.00/pcIN STOCK100
QUZS-C-S-02500200-010025.0×20.0xT1.0mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$10.00/pcIN STOCK100
QUZS-C-S-02500250-010025.0×25.0xT1.0mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$12.00/pcOUT-OF-STOCKContact us
QUZS-C-S-02540127-005025.4×12.7xT0.5mm, UV Quartz, 40/20 S/DS$7.50/pcIN STOCK150
QUZS-C-S-02540127-010025.4×12.7xT1.0mm, UV Quartz, 40/20 S/DS$7.00/pcIN STOCK250
QUZS-C-S-02540254-000725.4×25.4xT0.07mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$260.00/pcIN STOCK8
QUZS-C-S-02540254-000825.4×25.4xT0.08mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$240.00/pcIN STOCK10
QUZS-C-S-02540254-000925.4×25.4xT0.09mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$220.00/pcIN STOCK40
QUZS-C-S-02540254-001025.4×25.4xT0.1mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$190.00/pcIN STOCK22
QUZS-C-S-02540254-001325.4×25.4xT0.13mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$155.00/pcIN STOCK10
QUZS-C-S-02540254-001425.4×25.4xT0.14mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$130.00/pcIN STOCK10
QUZS-C-S-02540254-001525.4×25.4xT0.15mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$115.00/pcIN STOCK18
QUZS-C-S-02540254-001725.4×25.4xT0.17mm, UV Quartz, 40/20 S/D Double-Side-Polished, MOQ=25pcsS$65.00/pcOUT-OF-STOCKContact us
QUZS-C-S-02540254-002025.4×25.4xT0.2mm, UV Quartz, 40/20 S/D Double-Side-Polished, MOQ=25pcsS$29.00/pcIN STOCK966
QUZS-C-S-02540254-004025.4×25.4xT0.4mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$15.00/pcIN STOCK793
QUZS-C-S-02540254-005025.4×25.4xT0.5mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$9.50/pcIN STOCK1906
QUZS-C-S-02540254-006025.4×25.4xT0.6mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$9.80/pcIN STOCK800
QUZS-C-S-02540254-007025.4×25.4xT0.7mm, UV Fused Quartz, 40/20 S/D Double-Side-PolishedS$9.50/pcIN STOCK389
QUZS-C-S-02540254-007625.4×25.4xT0.76mm, Fused Quartz, 40/20 S/D, MOQ=100pcsS$14.40/pcIN STOCK1000
QUZS-C-S-02540254-008025.4×25.4xT0.8mm, UV Quartz, 40/20 S/D Double-Side-PolishedS$9.10/pcIN STOCK975
QUZS-C-S-02540254-010025.4×25.4xT1.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$8.50/pcIN STOCK3100
QUZS-C-S-02540254-015025.4×25.4xT1.5mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$9.50/pcIN STOCK536
QUZS-C-S-02540254-020025.4×25.4xT2.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$9.80/pcIN STOCK488
QUZS-C-S-02540254-0230DUV25.4×25.4xT2.3mm, Deep UV, 40-20 S/D, 4-side polishedS$25.00/pcIN STOCK50
QUZS-C-S-02540254-025025.4×25.4xT2.5mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$9.00/pcIN STOCK500
QUZS-C-S-02540254-030025.4×25.4xT3.0mm, UV Quartz, 40-20 S/D, Double-Side-PolishedS$10.00/pcIN STOCK344
QUZS-C-S-02540254-050025.4×25.4xT5.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$15.00/pcIN STOCK187
QUZS-C-S-02000280-030028.0×20.0xT3.0mm, UV Quartz, 40/20 S/DS$40.00/pcIN STOCK8
QUZS-C-S-03000100-010030.0×10.0xT1.0mm, UV Quartz, 40/20 S/D Double-Side-Polished, MOQ=10pcsS$8.50/pcIN STOCK1229
QUZS-C-S-03000140-010030.0×14.0xT1.0mm, UV Quartz, 40/20 S/D Double-Side-Polished, MOQ=10pcsS$21.00/pcIN STOCK1000
QUZS-C-S-03000300-010030.0×30.0xT1.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$29.00/pcIN STOCK1
QUZS-C-S-03000300-100030.0×30.0xT10.0mm, UV Quartz, 40-20 S/D, Double-Side-PolishedS$132.00/pcIN STOCK89
QUZS-C-S-03500350-050035.0×35.0xT5.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$70.00/pcIN STOCK1
QUZS-C-S-03970207-006039.75×20.70×0.60mm, UV Quartz, 40-20 S/DS$70.00/pcIN STOCK100
QUZS-C-S-04000100-008040.0×10.0xT0.80mm, UV Quartz, 40-20 S/D Double-Side-Polished, MOQ=20pcsS$15.00/pcIN STOCK1000
QUZS-C-S-04000120-008040.0×12.0xT0.80mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$30.00/pcIN STOCK5
QUZS-C-S-04000140-008040.0×14.0xT0.80mm, UV Quartz, 40-20 S/D Double-Side-Polished, MOQ=10pcsS$24.00/pcIN STOCK1000
QUZS-C-S-04000150-008040.0×15.0xT0.80mm, UV Quartz, 40-20 S/D Double-Side-Polished, MOQ=20pcsS$20.00/pcIN STOCK1000
QUZS-C-S-04000400-008040.0×40.0xT0.80mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$20.00/pcIN STOCK424
QUZS-C-S-04500400-020045.0×40.0xT2.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$25.00/pcIN STOCK125
QUZS-C-S-04600090005046.0×9.0xT0.50mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$18.00/pcIN STOCK1
QUZS-C-S-05000100-023050.0×10.0xT2.3mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$35.00/pcOUT-OF-STOCKContact us
QUZS-C-S-05000120-023050.0×12.0xT2.3mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$36.00/pcIN STOCK1000
QUZS-C-S-V05000500-023050.0×50.0xT2.3mm, VIOSIL Synthetic Quartz, 40/20 S/DS$95.00/pcIN STOCK20
QUZS-C-S-05080254-004050.8×25.4xT0.4mm, UV Quartz, 40/20 S/D Double-Side-Polished, MOQ=100pcsS$36.00/pcOUT-OF-STOCKContact us
QUZS-C-S-05080508-010050.8×50.8xT1.0mm, UV Quartz Glass, 40-20 S/D Double-Side-PolishedS$30.00/pcIN STOCK68
QUZS-C-S-05080508-030050.8×50.8xT3.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$40.00/pcIN STOCK126
QUZS-C-S-05080508-050050.8×50.8xT5.0mm, UV Quartz Glass, 40-20 S/DS$60.00/pcIN STOCK1
QUZS-C-S-05500150-020055.0×15.0xT2.0mm, UV Fused Quartz, 40-20 S/DS$48.00/pcIN STOCK10
QUZS-C-S-06000175-020060.0×17.5xT2.0mm, UV Quartz, 40-20 S/D, MOQ=50pcsS$32.00/pcIN STOCK441
QUZS-C-S-06000180-020060.0×18.0xT2.0mm, UV Fused Quartz, 40-20 S/D, MOQ=20pcsS$40.00/pcIN STOCK200
QUZS-C-S-06000350-050060.0×35.0xT5.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$45.00/pcIN STOCK56
QUZS-C-S-V06000400-023060.0×40.0xT2.3mm, VIOSIL Synthetic Quartz, 40/20 S/DS$95.00/pcIN STOCK5
QUZS-C-S-06500350-050065.0×35.0xT5.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$59.00/pcIN STOCK100
QUZS-C-S-07000300-010070.0×30.0xT1.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$136.00/pcIN STOCK1
QUZS-C-S-07000400-010070.0×40.0xT1.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$169.00/pcIN STOCK1
QUZS-C-S-0700-0600-0050-R70.0×60.0xT5.0mm, UV Quartz Glass, R2mm(4 corners)S$100.00/pcIN STOCK16
QUZS-C-S-07400740-0300-R3.074.0×74.0xT3.0mm, UV Quartz, 40-20 S/D, R3(4 corners)S$60.00/pcIN STOCK74
QUZS-C-S-V07500250-023075.0×25.0xT2.3mm, VIOSIL Synthetic Quartz, 40/20 S/DS$80.00/pcIN STOCK38
QUZS-C-S-07500750-020075.0×75.0xT2.0mm, UV Fused Quartz, 40/20 S/D Double-Side-PolishedS$95.00/pcOUT-OF-STOCKContact us
QUZS-C-S-07620254010076.2×25.4xT1.0mm, UV Quartz, 40-20 S/D Double-Side-Polished, MOQ=10pcsS$25.00/pcIN STOCK992
QUZS-C-S-08000200-020080.0×20.0xT2.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$90.00/pcIN STOCK97
QUZS-C-S-09000310-010090.0×31.0xT1.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$85.00/pcIN STOCK100
QUZS-C-S-09500150-020095.0×15.0xT2.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$60.00/pcOUT-OF-STOCKContact us
QUZS-C-10000570-0200-D5H100.0×57.0xT2.0mm, UV Quartz, with Dia5mm hole thru
VIEW DETAILED DRAWING IN GALLERY (BOTTOM OF PAGE)		S$135.00/pcIN STOCK10100.0x57.0xT2.0mm Quartz Window(Hole D5.0mm)_Part Number: QUZS-C-10000570-0200-D5H
QUZS-C-S-10000800-0250100.0×80.0xT2.5mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$195.00/pcIN STOCK34
QUZS-C-S-10001000-0100100.0×100.0xT1.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$250.00/pcIN STOCK42
QUZS-C-S1000-3000-C3B1100.0×100.0xT30.0mm, UV Quartz, 6-surface polished
VIEW DETAILED DRAWING IN GALLERY (BOTTOM OF PAGE)		S$1,490.00/pcIN STOCK5100.0x100.0xT30.0mm Quartz Glass Cube(40-20 SD)_Part Number: QUZS-C-S1000-3000-C3B1
QUZS-C-S-11001000-1000-C3.5110.0×100.0xT10.0mm, UV Quartz, 6-surface cube, Chamfered C3.5mm x 45deg, (clear polished bevel surfaces)
VIEW DETAILED DRAWING IN GALLERY (BOTTOM OF PAGE)		S$700.00/pcIN STOCK5110.0x100.0xT10.0mm Quartz Glass Cube(4xC3.5)_Part Number: QUZS-C-S-11001000-1000-C3.5
QUZS-C-S-12500440-0200125.0×44.0xT2.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$135.00/pcIN STOCK1000
QUZS-C-S-12500500-0200125.0×50.0xT2.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$175.00/pcIN STOCK26
QUZS-C-S-12500750-0200125.0×75.0xT2.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$220.00/pcIN STOCK2
QUZS-C-S-12501250-0100125.0×125.0xT1.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$300.00/pcIN STOCK15
QUZS-C-S-12501250-0200125.0×125.0xT2.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$320.00/pcIN STOCK21
QUZS-C-S-13000800-0500130.0×80.0xT5.0, UV Synthetic Quartz, 40-20 S/DS$350.00/pcIN STOCK1
QUZS-C-S-13001000-1000130.0×100.0xT10.0mm, UV Synthetic Quartz, 40-20 S/DS$590.00/pcIN STOCK9
QUZS-C-S-13001000-1000HC5.0130.0×100.0xT10.0mm, Quartz, 40-20 S/D, Dia 5.0+/-0.1mm hole (thru) x 1 postion on center of 130x100mm
VIEW DETAILED DRAWING IN GALLERY (BOTTOM OF PAGE)		S$680.00/pcIN STOCK22130.0x100.0xT10.0mm Quartz Glass Window(Hole5.0mm)_Part Number: QUZS-C-S-13001000-1000HC5.0
QUZS-C-S-13001200-2000130.0×120.0xT20.0mm, UV Fused Quartz, 40-20 S/D, Double-Side-PolishedS$1,750.00/pcIN STOCK8
QUZS-C-S-13300073-0500133.0×7.3xT5.0mm, UV Synthetic Quartz, 40-20 S/D Double-Side-PolishedS$155.00/pcIN STOCK79
QUZS-C-15001080-0500C3150.0×108.0xT5.0mm, UV Quartz, 40-20 S/D Double-Side-Polished, C3x4S$390.00/pcIN STOCK31
QUZS-C-S-16001300-1000160.0×130.0xT10.0mm, UV Quartz Glass, 40-20 S/D Double-Side-PolishedS$710.00/pcOUT-OF-STOCKContact us
QUZS-C-S-16001600-1000160.0×160.0xT10.0mm, UV Quartz Glass, 40-20 S/D Double-Side-PolishedS$790.00/pcIN STOCK8
QUZS-C-S-17001520-0200C3-40170x152xT2.0mm, UV Quartz, 3-corner 40mmx45degS$420.00/pcIN STOCK1
QUZS-C-S-17001520-0250C3-40170x152xT2.5mm, UV Quartz, 3-corner 40mmx45-degS$450.00/pcIN STOCK3
QUZS-C-S-18001300-2000180.0×130.0xT20.0mm, UV Quartz glass, 40-20 S/DS$1,800.00/pcOUT-OF-STOCKContact us
QUZS-C-S-20001300-1270-C13.5200.0×130.0xT12.7mm, UV Quartz, 40-20 S/D, 4xC13.5mmS$1,550.00/pcOUT-OF-STOCKContact us
QUZS-C-S-21001000-0500210.0×100.0xT5.0mm, UV Quartz, 40-20 S/D Double-Side-Polished, 4xR1mmS$410.00/pcOUT-OF-STOCKContact us
QUZS-C-S-21001100-0500210.0×110.0xT5.0mm, UV Quartz, 40-20 S/D Double-Side-Polished, 4xR1mmS$440.00/pcOUT-OF-STOCKContact us
QUZS-C-S-21402000-1000214.0×200.0xT10.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$820.00/pcIN STOCK2
QUZS-C-S-21502150-2000215.0×215.0xT20.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$2,100.00/pcIN STOCK8
QUZS-C-S-22002200-0600220.0×220.0xT6.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$985.00/pcIN STOCK2
QUZS-C-S-23002300-0600230.0×230.0xT6.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$1,050.00/pcIN STOCK9
QUZS-C-S-24500250-0500245.0×25.0xT5.0mm, UV Fused Quartz, 40-20 S/D Double-Side-PolishedS$340.00/pcIN STOCK5
QUZS-C-S-25001500-0300250.0×150.0xT3.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$620.00/pcIN STOCK2
QUZS-C-S-26001150-1300260.0×115.0xT13.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$1,920.00/pcIN STOCK7
QUZS-C-S-26002500-0500260.0×250.0xT5.0mm, UV Quartz, 40-20 S/D Double-Side-Polished, 4xR4mmS$950.00/pcIN STOCK8
QUZS-C-S-26801380-2000268.0×138.0xT20.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$1,960.00/pcIN STOCK3
QUZS-C-S-28001600-2000280.0×160.0xT20.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$2,200.00/pcIN STOCK4
QUZS-C-S-30000500-0100300.0×50.0xT1.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$268.00/pcIN STOCK10
QUZS-C-S-32900890-0300329.0×89.0xT3.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$790.00/pcIN STOCK5
QUZS-C-S-46502200-2000465.0×220.0xT20.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$5,150.00/pcOUT-OF-STOCKContact us
QUZS-C-S-46502800-2000465.0×280.0xT20.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$6,200.00/pcIN STOCK1
QUZS-C-S-50901290-0300509.0×129.0xT3.0mm, UV Quartz, 40-20 S/D Double-Side-PolishedS$1,450.00/pcIN STOCK5
List of C-GRADE SYNTHETIC QUARTZ (SQUARE) products available for sale. To request for quotation, please email sales@optics.sg with the part number and quantity required.
100.0x57.0xT2.0mm Quartz Window(Hole D5.0mm)_Part Number: QUZS-C-10000570-0200-D5H
100.0×57.0xT2.0mm Quartz Window(Hole D5.0mm)_Part Number: QUZS-C-10000570-0200-D5H

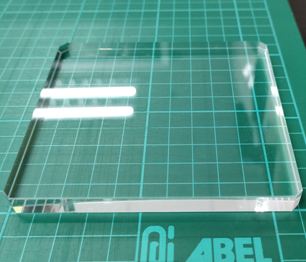

110.0x100.0xT10.0mm Quartz Glass Cube(4xC3.5)_Part Number: QUZS-C-S-11001000-1000-C3.5
110.0×100.0xT10.0mm Quartz Glass Cube(4xC3.5)_Part Number: QUZS-C-S-11001000-1000-C3.5
130.0x100.0xT10.0mm Quartz Glass Window(Hole5.0mm)_Part Number: QUZS-C-S-13001000-1000HC5.0
130.0×100.0xT10.0mm Quartz Glass Window(Hole5.0mm)_Part Number: QUZS-C-S-13001000-1000HC5.0
100.0x100.0xT30.0mm Quartz Glass Cube(40-20 SD)_Part Number: QUZS-C-S1000-3000-C3B1
100.0×100.0xT30.0mm Quartz Glass Cube(40-20 SD)_Part Number: QUZS-C-S1000-3000-C3B1
