C-GRADE SYNTHETIC QUARTZ (ROUND)

SUBSTRATE MATERIALUV Fused Quartz, UV grade (180-2100nm)
OUTER DIMENSIONRefer to table below; Tolerance -0.2/+0.0mm
THICKNESSRefer to table below; Tolerance +/-0.03mm
SURFACE QUALITYDouble side fine polished (40-20 scratch and dig, MIL Standard)
FLATNESS< Lambda/10 @ 632.8nm over clear aperture
PARALLELISM<1 arc minute
CHAMFER / BEVEL0.2~0.4mm x 45-deg protection ; Chip<0.1mm
Standardised specifications for all C-GRADE SYNTHETIC QUARTZ (ROUND) products.
PART NUMBERKEY SPECIFICATIONSUNIT PRICE (SGD)AVAILABILITYSTOCK QTYPROMOTION
QUZS-C-R-0050-0050Dia5.0xT0.5mm, UV Fused Quartz, 40-20 S/D DSPS$5.60/pcOUT-OF-STOCKContact us
QUZS-C-R-0050-0100Dia5.0xT1.0mm, UV Fused Quartz, 40-20 S/D DSPS$4.20/pcOUT-OF-STOCKContact us
QUZS-C-R-0060-0200Dia6.00xT2.0mm, UV Fused Quartz, 40-20 S/D DSP`S$20.00/pcIN STOCK17
QUZS-C-R-0100-0050Dia10.0xT0.5mm, UV Fused Quartz, 40-20 S/D DSPS$5.60/pcIN STOCK400
QUZS-C-R-0100-0100Dia10.0xT1.0mm, UV Fused Quartz, 40-20 S/D DSPS$4.20/pcIN STOCK200
QUZS-C-R-0120-0100Dia12.0xT1.0mm, UV Fused Quartz, 40-20 S/D DSPS$12.00/pcOUT-OF-STOCKContact us
QUZS-C-R-0150-0050Dia15.0xT0.5mm, UV Quartz, 40-20 S/D DSPS$20.00/pcIN STOCK20
QUZS-C-R-0150-0100Dia15.0xT1.0mm, UV Quartz, 40-20 S/DS$20.00/pcIN STOCK50
QUZS-C-R-0150-0200Dia15.0xT2.0mm, UV Quartz, 40-20 S/DS$20.00/pcIN STOCK50
QUZS-C-R-0150-0400Dia15.0xT4.0mm, UV Quartz, 40-20 S/DS$20.00/pcIN STOCK48
QUZS-C-R-0254-0100Dia25.4xT1.0mm, UV Quartz, 40-20 S/D DSPS$12.50/pcIN STOCK3657
QUZS-C-R-0254-0200Dia25.4xT2.0mm, UV Quartz, 40-20 S/D DSPS$22.00/pcIN STOCK373
QUZS-C-R-0254-0500Dia25.4xT5.0mm, UV Quartz, 40-20 S/DS$25.00/pcIN STOCK200
QUZS-C-R-0280-0030Dia28.0xT0.3mm, UV Quartz, 40-20 S/D DSPS$65.00/pcIN STOCK5
QUZS-C-R-0318-0950-GDia31.8xT6.3mm, UV Quartz, With U-groove centered (width: 2.50mm) on edge surface (ground) for O-ring
VIEW DETAILED DRAWING IN GALLERY (BOTTOM OF PAGE)		S$150.00/pcIN STOCK56DIA31.8xT9.5mm Vacuum Quartz Window (U-Grooved) - QUZS-C-R-0318-0950-G
QUZS-C-R-0318-0950-G-CDia31.8xT9.5mm, UV Quartz, Concave, With U-groove centered(width: 2.50mm) on edge surface (ground) for O-ring
VIEW DETAILED DRAWING IN GALLERY (BOTTOM OF PAGE)		S$200.00/pcIN STOCK5DIA31.8xT9.5mm Concave Quartz Window(U Grooved) - QUZS-C-R-0318-0950-G-C
QUZS-C-R-0378-0630Dia37.8xT6.3mm, UV Quartz, 40-20 S/DS$40.00/pcIN STOCK27
QUZS-C-R-0381-0100Dia38.1xT1.0mm, UV Quartz, 40-20 S/D DSPS$25.00/pcIN STOCK50
QUZS-C-R-0381-0200Dia38.1xT2.0mm, UV Quartz, 40-20 S/D DSPS$26.00/pcIN STOCK50
QUZS-C-R-0381-0500Dia38.1xT5.0mm, UV Quartz, 40-20 S/D DSPS$48.00/pcIN STOCK4
QUZS-C-R-0400-0100Dia40.0xT1.0mm, UV Quartz, 40-20 S/D DSPS$27.00/pcIN STOCK50
QUZS-C-R-0400-0200Dia40.0xT2.0mm, UV Quartz, 40-20 S/D DSPS$28.00/pcIN STOCK47
QUZS-C-R-0400-0230Dia40.0xT2.3mm, Synthetic Quartz, Deep UV, Semiconductor grade, 40-20 S/D, MOQ=10pcsS$95.00/pcIN STOCK32
QUZS-C-R-0500-0100Dia50.0xT1.0mm, UV fused quartz, 40-20 S/D DSPS$29.00/pcIN STOCK210
QUZS-C-R-0500-0200Dia50.0xT2.0mm, UV fused quartz, 40-20 S/D DSPS$30.00/pcIN STOCK152
QUZS-C-R-0500-0500Dia50.0xT5.0mm, UV Fused Quartz, 40-20 S/D DSPS$115.00/pcIN STOCK30
QUZS-C-R-0508-0030Dia50.8xT0.30mm, UV Quartz, 40-20 S/D DSPS$80.00/pcIN STOCK79
QUZS-C-R-0508-0100Dia50.8xT1.0mm, UV fused quartz, 40-20 S/D DSPS$29.00/pcIN STOCK200
QUZS-C-R-0508-0200Dia50.8xT2.0mm, UV fused quartz, 40-20 S/D DSPS$30.00/pcIN STOCK200
QUZS-C-R-0508-0300Dia50.8xT3.0mm, UV Fused Quartz, 40-20 S/D DSPS$35.00/pcIN STOCK21
QUZS-C-R-0510-0200Dia51.0xT2.0mm, UV fused quartz, 40-20 S/D DSPS$35.00/pcIN STOCK7
QUZS-C-R-0540-0600Dia54.0xT6.0mm, UV Fused Quartz, 40-20 S/D DSPS$95.00/pcIN STOCK40
QUZS-C-R-0600-0700Dia60.0xT7.0mm, UV Fused quartz glass, 40-20 S/D DSPS$195.00/pcIN STOCK95
QUZS-C-R-0600-1500Dia60.0xT15.0mm, UV Fused Quartz, 40-20 S/DS$350.00/pcIN STOCK6
QUZS-C-R-0670-1200Dia67.0xT12.0mm, UV Fused Quartz, 40-20 S/D DSPS$335.00/pcIN STOCK9
QUZS-C-R-0690-0300Dia69.0xT3.0mm, UV Fused Quartz, 40-20 S/D DSPS$95.00/pcIN STOCK49
QUZS-C-R-0700-0500Dia70.0xT5.0mm, UV Fused Quartz, 40-20 S/D DSPS$148.00/pcIN STOCK3
QUZS-C-R-0700-0700Dia70.0xT7.0mm, UV Fused Quartz, 40-20 S/D DSPS$210.00/pcIN STOCK100
QUZS-C-R-0762-0050WDia76.2xT0.5mm, Fused Quartz, Ra<10A, DSP, MOQ=100pcsS$55.00/pcOUT-OF-STOCKContact us
QUZS-C-R-0762-0100Dia76.2xT1.0mm, UV quartz, 40-20 S/D, DSPS$120.00/pcIN STOCK79
QUZS-C-R-0762-0370Dia76.2xT3.70mm, UV quartz, 40-20 S/DS$160.00/pcIN STOCK49
QUZS-C-R-1000-0300Dia100.0xT3.0mm, UV Fused Quartz, 40-20 S/D DSPS$165.00/pcIN STOCK100
QUZS-C-R-1000-0500Dia100.0xT5.0mm, UV Fused Quartz, 40-20 S/D DSPS$239.00/pcIN STOCK20
QUZS-C-R-1000-2000Dia100.0xT20.0mm, UV Quartz, 40-20 S/D DSPS$1,220.00/pcIN STOCK10
QUZS-C-R-1016-0050WDia101.6xT0.5mm, Fused Quartz, 40-20 S/D DSP, MOQ=20S$125.00/pcIN STOCK173
QUZS-C-R-1016-0100WDia101.6xT1.0mm, Fused Quartz, 40-20 S/D DSP, MOQ=20S$110.00/pcIN STOCK200
QUZS-C-R-1016-0150Dia101.6xT1.5mm, UV Fused Quartz, 40-20 S/D DSPS$180.00/pcIN STOCK12
QUZS-C-R-1016-0300Dia4″(101.6)xT3.0mm, UV Fused Quartz, 40-20 S/D DSPS$170.00/pcIN STOCK100
QUZS-C-R-1016-0635Dia4″(101.6)xT6.3mm, UV Fused Quartz, 40-20 S/D DSPS$375.00/pcIN STOCK46
QUZS-C-R-1016-2000Dia101.6xT20mm, UV Synthetic Quartz, 40-20 S/D DSPS$1,250.00/pcIN STOCK10
QUZS-C-R-1100-0150Dia110.0xT1.5mm, UV Fused Quartz, 40-20 S/DS$300.00/pcIN STOCK16
QUZS-C-R-1200-1300Dia120.0xT13.0mm, UV Fused Quartz, 40-20 S/D DSPS$850.00/pcOUT-OF-STOCKContact us
QUZS-C-R-1300-0600Dia130.0xT6.0mm, UV quartz glass, 40-20 S/D DSPS$458.00/pcIN STOCK1
QUZS-C-R-1500-1000Dia150.0xT10.0mm, UV Quartz, 40-20 S/D DSP;MOQ=5pcsS$520.00/pcOUT-OF-STOCKContact us
QUZS-C-R-1524-0050WDia152.4xT0.5mm, Fused Quartz, 40-20 S/D DSP, MOQ=100S$155.00/pcIN STOCK200
QUZS-C-R-1524-0100WDia152.4xT1.0mm, Fused Quartz, 40-20 S/D DSP, MOQ=100S$140.00/pcIN STOCK200
QUZS-C-R-1700-0350Dia170.0xT3.5mm, UV quartz glass, 40-20 S/D DSPS$520.00/pcIN STOCK2
QUZS-C-R-1800-1000Dia180.0xT10.0mm, UV Quartz, 40-20 S/D DSP;MOQ=5pcsS$596.00/pcOUT-OF-STOCKContact us
QUZS-C-R-2000-0800Dia200.0xT8.0mm, UV Fused Quartz, 40-20 S/D DSPS$580.00/pcIN STOCK8
QUZS-C-R-2032-0370Dia203.2xT3.7mm, UV Fused Quartz, 40-20 S/DS$500.00/pcIN STOCK10
QUZS-C-R-2090-0800-STEPDia209.0xT8.0mm, UVFS Quartz, 40-20 S/D, Step-edgeS$900.00/pcOUT-OF-STOCKContact us
List of C-GRADE SYNTHETIC QUARTZ (ROUND) products available for sale. To request for quotation, please email sales@optics.sg with the part number and quantity required.
DIA31.8xT9.5mm Vacuum Quartz Window (U-Grooved) - QUZS-C-R-0318-0950-G
DIA31.8xT9.5mm Vacuum Quartz Window (U-Grooved) – QUZS-C-R-0318-0950-G

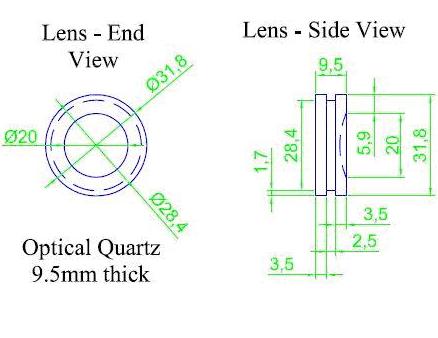

DIA31.8xT9.5mm Concave Quartz Window(U Grooved) - QUZS-C-R-0318-0950-G-C
DIA31.8xT9.5mm Concave Quartz Window(U Grooved) – QUZS-C-R-0318-0950-G-C
